Large floodlight
Item no. : SM-B6120-SFE
Dimension(Inch) : 135*103*95.2mm
Function: Large floodlight
Working Voltage: 12-48V
Certificated: ECE, DOT, RoHS, IP67
Combining camera and work light

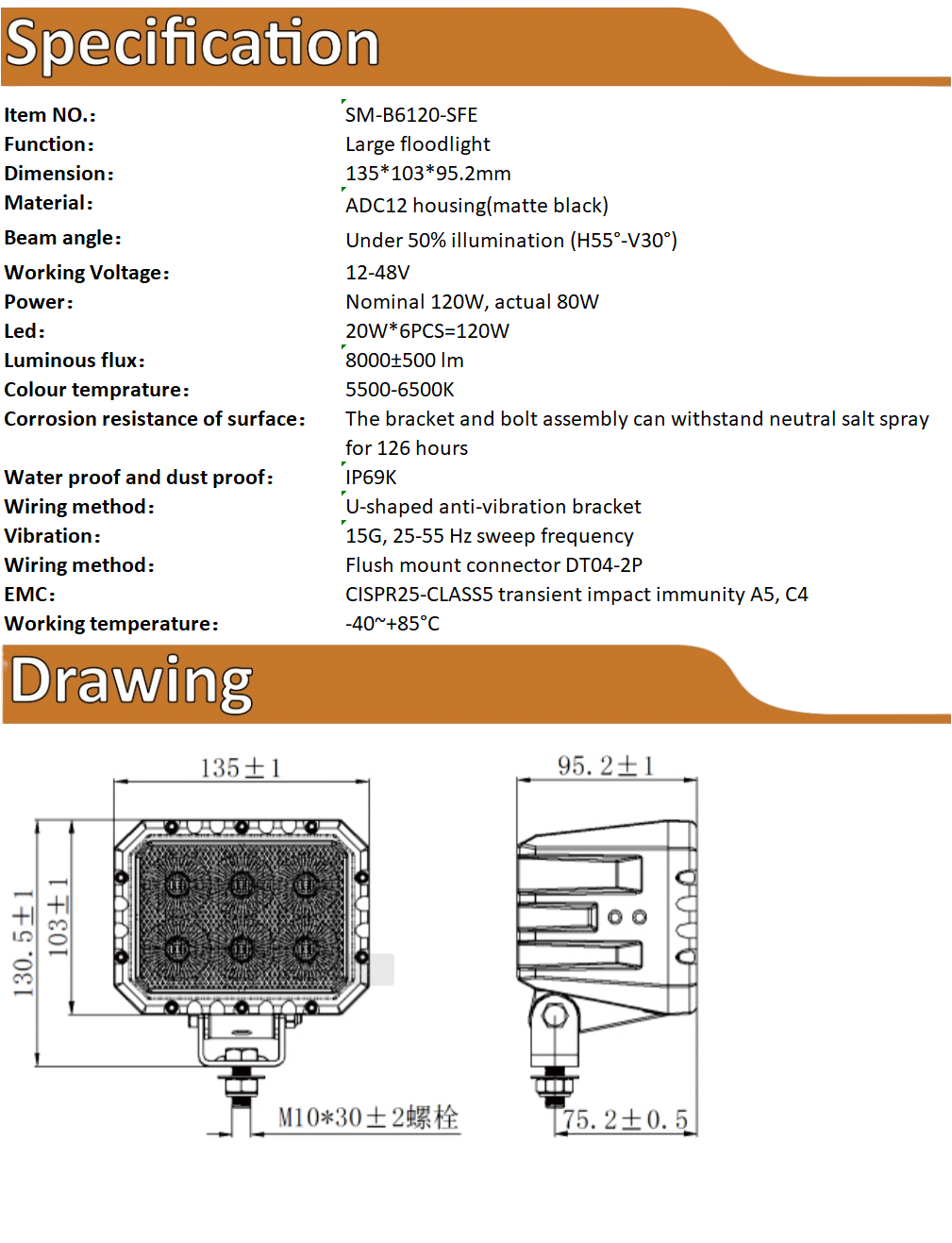

Work Light
Item NO.：SM-B6120-SFE
Function：Large floodlight

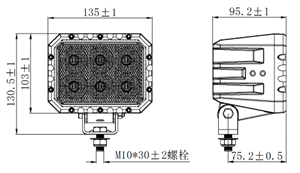

Dimension：135*103*95.2mm
Material：ADC12 housing(matte black)
Beam angle：Under 50% illumination (H55°-V30°)
Working Voltage：12-48V
Power：Nominal 120W, actual 80W
Led：20W*6PCS=120W
Luminous flux：8000±500 lm
Colour temprature：5500-6500K
Corrosion resistance of surface：The bracket and bolt assembly can withstand neutral salt spray for 126 hours
Waterproof and dust-proof：IP69K
Installation：U-shaped anti-vibration bracket
Vibration：15G, 25-55 Hz sweep frequency
Wiring method：Flush mount connector DT04-2P
EMC：CISPR25-CLASS5 transient impact immunity A5, C4
Working temperature：-40~+85°C
