Floodlight
Item no. : SM-B6100-SFA
Dimension(Inch) : 108*126.5*85mm
Function: Floodlight
Working Voltage: 9-32V
Certificated: ECE, DOT, RoHS, IP67
Combining camera and work light
Work Light

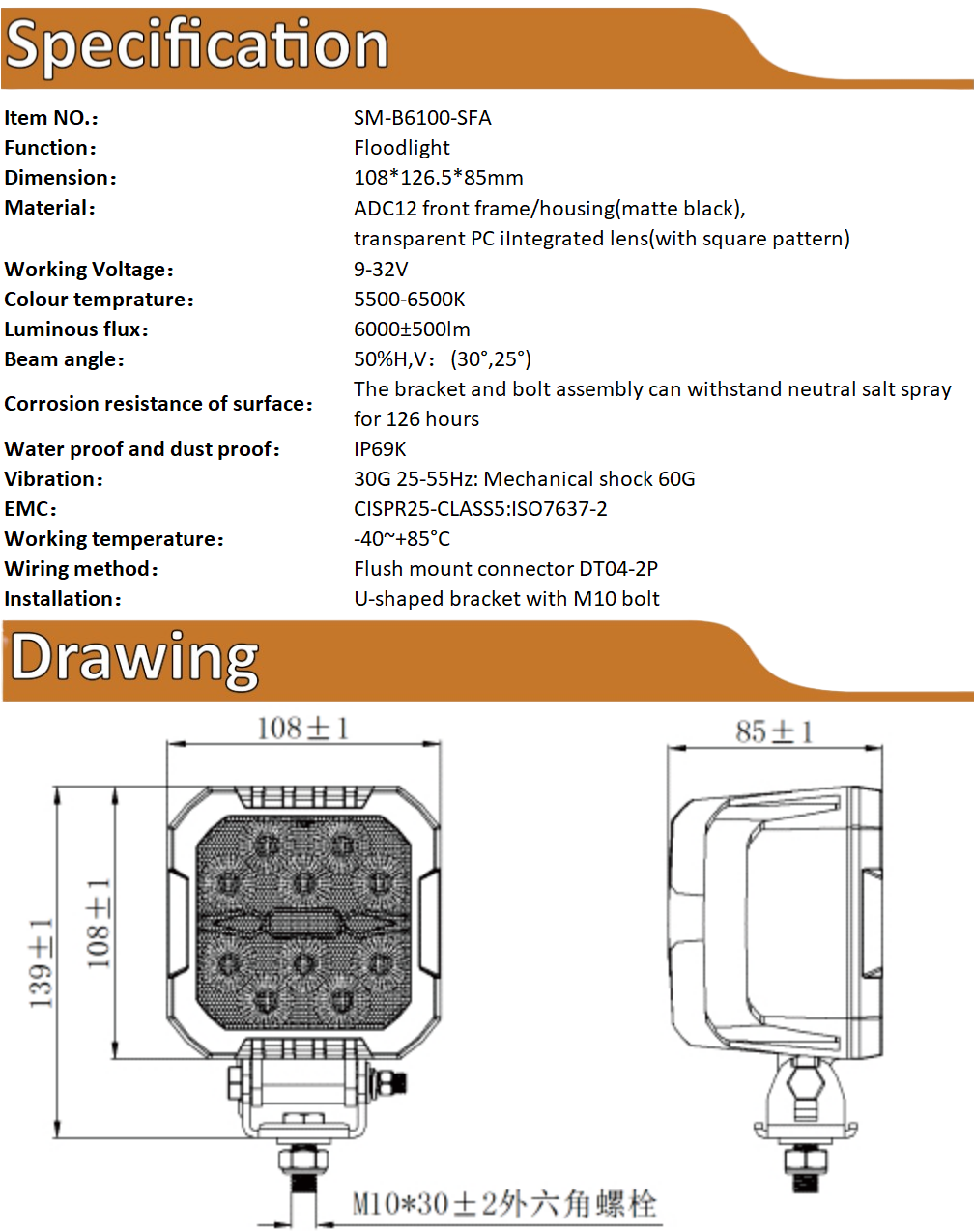

Item NO.：SM-B6100-SFA
Function：Floodlight

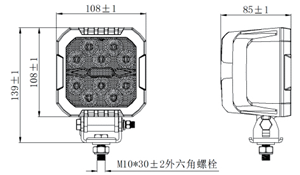

Dimension：108*126.5*85mm
Material：ADC12 front frame/housing(matte black),transparent PC iIntegrated lens(with square pattern)
Working Voltage：9-32V
Colour temprature：5500-6500K
Luminous flux：6000±500lm
Beam angle：50%H,V：(30°,25°)
Corrosion resistance of surface：The bracket and bolt assembly can withstand neutral salt spray for 126 hours
Waterproof and dust-proof：IP69K
Vibration：30G 25-55Hz: Mechanical shock 60G
EMC：CISPR25-CLASS5:ISO7637-2
Working temperature：-40~+85°C

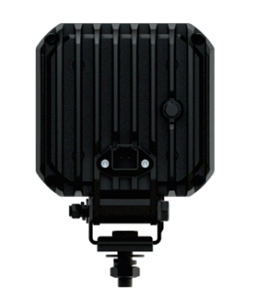

Wiring method：Flush mount connector DT04-2P
Installation：U-shaped bracket with M10 bolt
