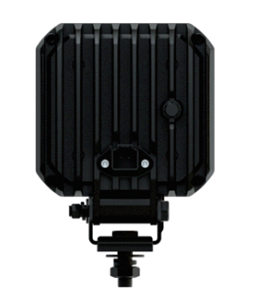

High beam work light
Item no. : SM-B6100-SDA
Dimension(Inch) : 108*126.5*85mm
Function: High beam work light
Working Voltage: 9-32V
Certificated: ECE, DOT, RoHS, IP67
Combining camera and work light

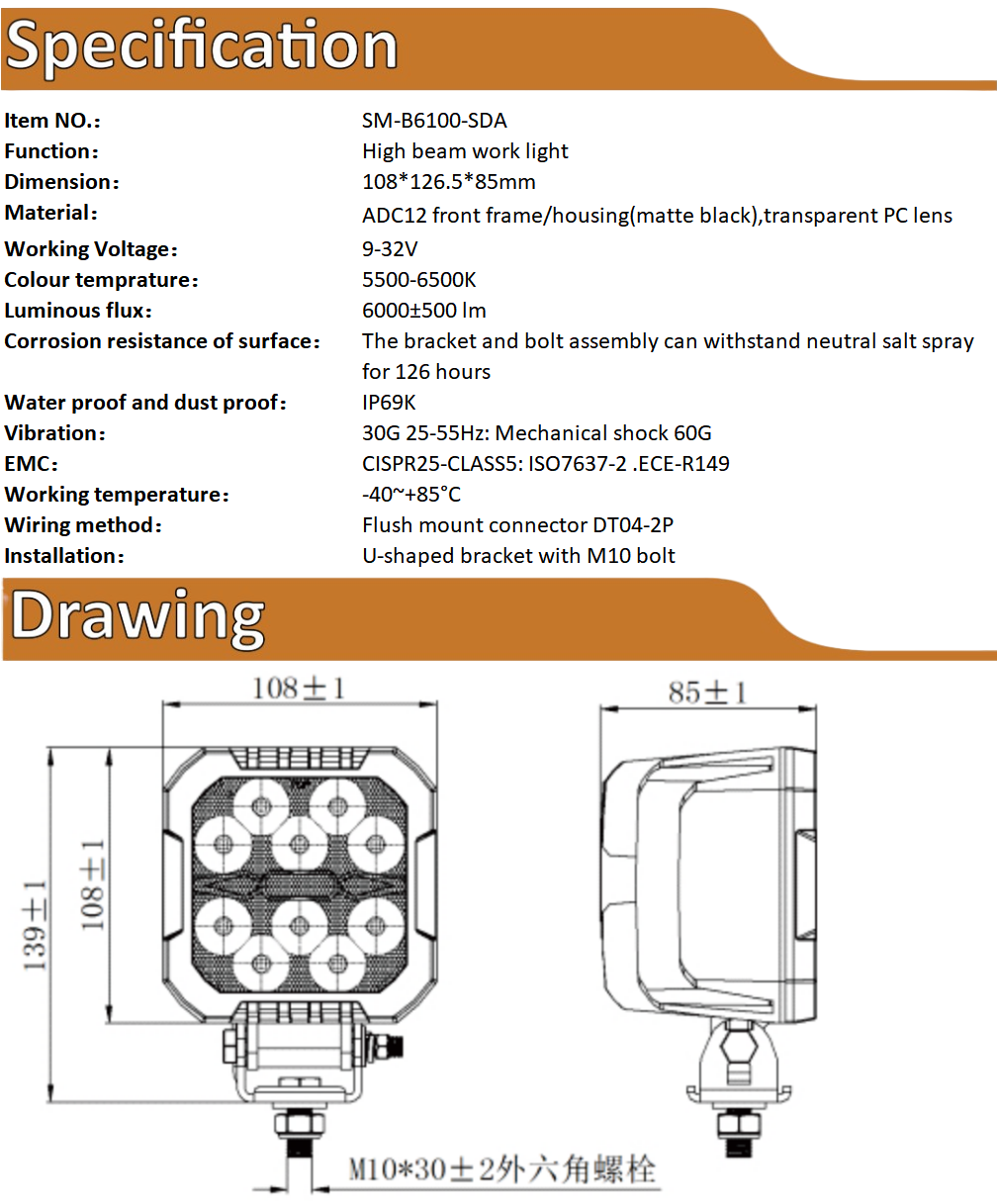

Work Light
Item NO.：SM-B6100-SDA
Function：High beam work light

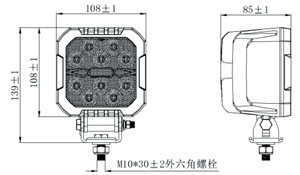

Dimension：108*126.5*85mm
Material：ADC12 front frame/housing(matte black),transparent PC lens
Working Voltage：9-32V
Colour temprature：5500-6500K
Luminous flux：6000±500 lm
Corrosion resistance of surface：The bracket and bolt assembly can withstand neutral salt spray for 126 hours
Waterproof and dust-proof：IP69K
Vibration：30G 25-55Hz: Mechanical shock 60G
EMC：CISPR25-CLASS5: ISO7637-2 .ECE-R149
Working temperature：-40~+85°C
Wiring method：Flush mount connector DT04-2P
Installation- U-shaped bracket with M10 bolt
